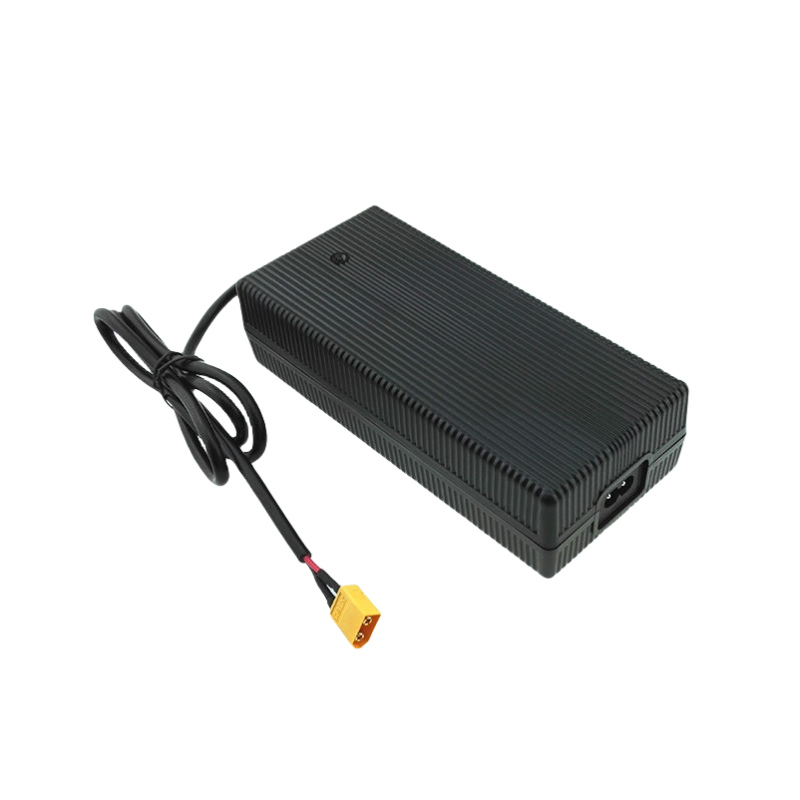

QL1269000 12.6V 9A Charger for 3S 11.1V Li-ion Battery
-
Powerful 12.6V 9A charger for 3S 11.1V Li-ion or Lipo batteries
-
Intelligent charging: pre-charge, constant current, constant voltage, automatic cut-off
-
Dual LED indicators for status: charging, full, error, no battery
-
Multiple safety protections: OVP, OCP, short-circuit, reverse polarity
-
High conversion efficiency up to 88%
-
Durable casing, 800g weight, compact 178×80×46mm size
-
Fully certified: CE, UL, FCC, TUV, PSE, CCC
-
Designed for storage batteries, robotics, tools, drones, lighting
-
Custom charger design and labeling supported
-
3-year manufacturer warranty included
Description
QILIPOWER® QL1269000 12.6V 9A Li-ion Battery Charger for 3S 11.1V Lithium Battery Packs – CE UL FCC Certified
Technical Specifications
| Item | Specification | Remark |
|---|---|---|
| Brand | QILIPOWER® | |
| Model | QL1269000 | |
| Warranty | 3 Years | |
| 1. Input | ||
| Rating input voltage | 100~240 Vac 50/60 Hz | |
| Input voltage range | 90~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V Output: Full load |
| Max input power | 128.8W | Input:100V Output: Full load |
| 2. Output | ||
| No load output voltage | DC 12.6 V | |
| Output voltage range | DC 11.10V~12.60V | |
| Suit with battery type | 3S Li-ion battery | |
| Charging voltage | DC 12.6 V ±0.2 V | |
| Charging current | 9A ±10% | |
| Pre-charge | 0.9A ± 0.1A | Voltage ≤ 9V |
| Charge-end current | ≤1.6 A ±10% | |
| Timer | – | |
| Max output power | 113.4W | |
| Ripple voltage | ≤168mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off / All on / All flash / Sequential flash | No battery / Finished / Error / Charging |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥88% | Full load @220V |
| 3. Environment | ||
| Operate temperature | -10 ~ +40℃ | |
| Operate humidity | < +90% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +95% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test x3 | Non-operating condition |
| 4. Mechanical | ||
| Weight | 800g | |
| Size | 178×80×46mm | Casing only |
| Connector | Refer to order | |
| 5. Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE / TUV / FCC / PSE / CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) |
● Adaptor for:
3S 11.1V Lithium Battery, 3S Lipo Battery, 3S Li-ion Battery, 11.1V 18650 Battery Pack, RC Battery Pack, Portable Power Pack, LED Light Battery, Industrial Robot Battery, Drone Battery, E-bike Battery (11.1V), Scooter Battery, 11.1V POS Terminal Battery, 3S Backup Battery, Wireless Device Battery, Medical Device Battery, Security System Battery, Testing Instrument Battery, DIY Lithium Battery, Battery with PCM/BMS, Custom 11.1V Battery Modules, Power Tool Battery
● Customized Charger:
OEM & ODM customization supported. Charger case, labels, connectors, and parameters (voltage/current) can be tailored to customer requirements. Branding and color customization are welcome for bulk orders. Fast prototyping available.
