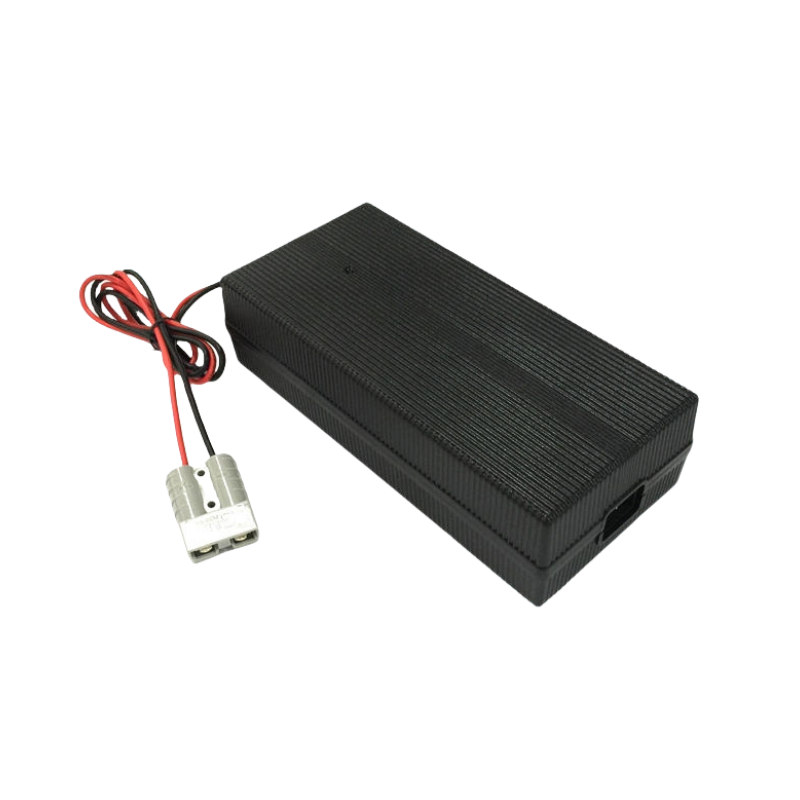

QL12620000 12.6V 20A Charger for 3S 11.1V Li-ion Battery
12.6V output, ideal for 3S 11.1V Li-ion / LIPO battery packs
• High-efficiency 20A fast charging with pre-charge, CC, CV and auto cut-off
• Dual color LED indicators for power and charge status
• Comprehensive protections: OVP, OCP, SCP, reverse polarity
• Compact aluminum housing with natural cooling
• Widely used in drones, e-bikes, LED systems, robots, and more
• CE, UL, FCC, TUV, PSE, CCC certified
• 3-year warranty, OEM & ODM service available
Description
QILIPOWER® QL12620000 12.6V 20A Li-ion Battery Charger for 3S 11.1V LIPO Lithium-ion Battery Packs – CE UL FCC Certified
A powerful 20A charger designed for 3S 11.1V Li-ion and LIPO battery packs, suitable for high-capacity applications such as drones, e-bikes, robots, and portable power systems. This charger features full protection, intuitive LED status indicators, and compliance with global safety standards.
Technical Specifications
| Item | Specification | Remark |
|---|---|---|
| Brand | QILIPOWER® | |
| Model | QL12620000 | |
| Warranty | 3 years | |
| Rating Input Voltage | 100~240 Vac 50/60Hz | |
| Input Voltage Range | 90~264 Vac | |
| Rating Input Current | 1.0 A/RMS | Input: 100V, Output: Full load |
| Max Input Power | 286 W | Input: 100V, Output: Full load |
| No Load Output Voltage | 12.6 V | |
| Output Voltage Range | 11.10V ~ 12.60V | |
| Battery Type Supported | 3S Li-ion battery | |
| Charging Voltage | 12.6 V ±0.2 V | |
| Charging Current | 20A ±10% | |
| Pre-charge Current | 2A ± 0.1A | When voltage ≤ 9V |
| Charge End Current | ≤4A ±10% | |
| Max Output Power | 252 W | |
| Ripple Voltage | ≤168 mV | Full load |
| Power LED | Red | Power On |
| Charging LED | All Off: No battery / All On: Finished / Flashing: Charging / All Flashing: Error | |
| Protections | OVP, OCP, Shorted, Reversed | |
| Efficiency | ≥88% | Full load @220V |
| Operating Temperature | -10℃ ~ +40℃ | |
| Operating Humidity | < 90% RH | |
| Storage Temperature | -40℃ ~ +70℃ | |
| Storage Humidity | 0 ~ 95% RH | |
| Cooling Method | Natural | |
| Vibration Resistance | 5MM / 50HZ / 600S | Non-operating condition |
| Impact Resistance | 1-meter drop test ×3 | Non-operating condition |
| Net Weight | 1500g | |
| Size | 233 × 108 × 64 mm | Casing only |
| Connector | Refer to order | |
| Max Temperature Rise | < 40℃ on casing | |
| Safety Approvals | CE, TUV, FCC, PSE, CCC | |
| MTBF | 30,000 H | |
| ESD Protection | 8.0 KV | |
| Hi-Pot Insulation | I/P to O/P: 3000V (1 min) |
• Adaptor for: 3S 11.1V Li-ion / LIPO battery packs used in drones, RC cars, e-scooters, hoverboards, LED lights, e-bikes, robot power systems, solar energy storage, security cameras, portable vacuum cleaners, POS devices, power tools, smart toys, inspection robots, wearable electronics, mini UPS, handheld equipment, and more.
• Customized Charger: Plug type, casing design, and output connectors customizable upon request.
