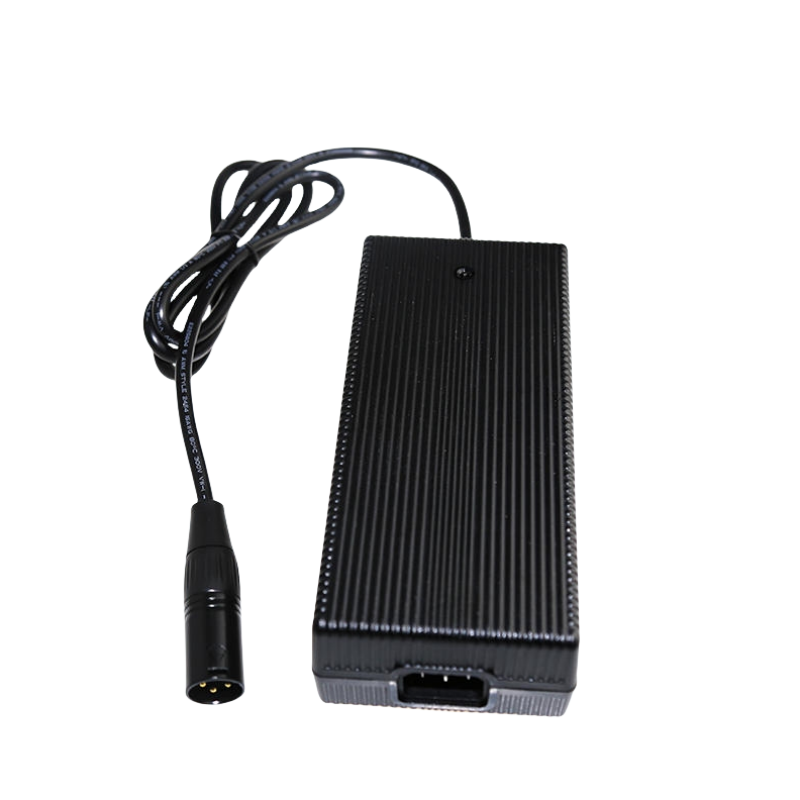

QL12610000 12.6V 10A Charger for 3S 11.10V Li-ion Battery
- High-efficiency 3S Li-ion battery charger with 10A fast output
- Supports pre-charge, CC, CV charging modes with auto cut-off
- Comprehensive protections: over-voltage, over-current, short-circuit, reverse polarity
- Real-time LED indicators show power and charging status
- Certified with CE, UL, TUV, FCC, PSE, CCC for worldwide compliance
Description
QILIPOWER® QL12610000 12.6V 10A Li-ion Battery Charger for 3S 11.10V Lithium Battery – CE UL FCC Certified
The Smart 12.6V 10A Li-ion Battery Charger Specifications (Model: QL12610000)
QILIPOWER® – Trusted Charging Solutions for Lithium Battery Systems Worldwide
| Item | Specification | Remark |
|---|---|---|
| Brand | QILIPOWER® | — |
| Model | QL12610000 | — |
| Warranty | 3 Years | Standard warranty |
| 1. Input | ||
| Rating Input Voltage | 100~240V AC, 50/60Hz | — |
| Input Voltage Range | 90~264V AC | — |
| Rated Input Current | 1.0A RMS | Input: 100V, full load |
| Max Input Power | 141W | Input: 100V, full load |
| 2. Output | ||
| No Load Output Voltage | DC 12.6V | — |
| Output Voltage Range | 11.1V ~ 12.6V | — |
| Charging Voltage | 12.6V ± 0.2V | — |
| Charging Current | 10A ± 10% | — |
| Pre-charge Current | 1A ± 0.1A | Activated ≤9V |
| Charge Termination Current | ≤1A ± 10% | Auto cut-off |
| Max Output Power | 126W | — |
| Ripple Voltage | ≤168mV | Full load |
| Battery Type Supported | 3S Li-ion Battery | — |
| Efficiency | ≥89% | Full load @220V |
| Charging Indicators | ||
| Power LED | Red | Power ON |
| Charging LED | Flashing one by one | Charging |
| All on | Fully charged | |
| All off | No battery | |
| All flashing | Error | |
| 3. Protection Features | ||
| Over Voltage Protection | Yes | — |
| Over Current Protection | Yes | — |
| Short Circuit Protection | Yes | — |
| Reverse Polarity Protection | Yes | — |
| 4. Environment | ||
| Operating Temperature | -10 ~ +40°C | — |
| Operating Humidity | <90% RH | Relative humidity |
| Storage Temperature | -40 ~ +70°C | — |
| Storage Humidity | 0 ~ 95% RH | Relative humidity |
| Cooling | Natural air cooling | — |
| Vibration Resistance | 5mm / 50Hz / 600s | Non-operating |
| Drop Resistance | 1 meter × 3 times | Non-operating |
| 5. Mechanical | ||
| Dimensions | 178 × 80 × 46 mm | Casing only |
| Weight | 800g | Net |
| Connector Type | Refer to order | — |
| 6. Safety & Reliability | ||
| Max Case Temperature Rise | <40°C | At full load |
| Safety Certifications | CE, UL, TUV, FCC, PSE, CCC | Global approvals |
| MTBF | ≥30,000 hours | High reliability |
| ESD Protection | 8.0KV | IEC standard |
| Hi-Pot Insulation Test | 3000V AC (1 min) | Input to output |
• Adaptor for: 3S 11.1V Li-ion / LIPO battery packs
• Customized Charger: Plug type, shell, and output connector options available upon request
