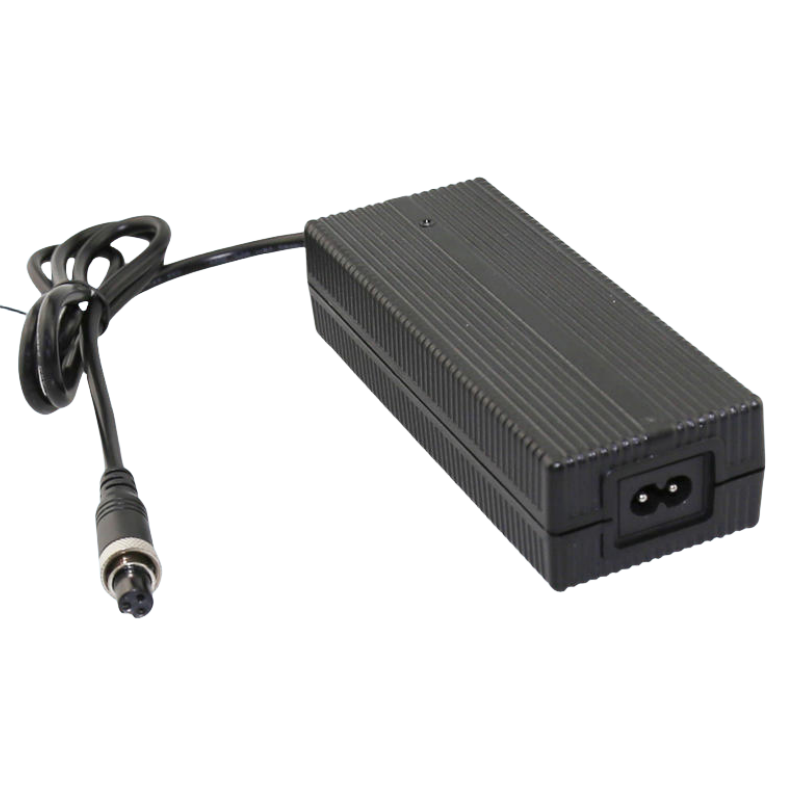

QL1267000 12.6V 7A Charger for 3S 11.1V Li-ion Battery
-
High-efficiency 12.6V 7A Li-ion battery charger for 3S 11.1V packs
-
Built-in intelligent charging: Pre-charge, CC, CV, Auto cut-off
-
Double-color LED for power and charge status indication
-
Multiple protection: OVP, OCP, short circuit, reverse polarity
-
Natural cooling design with high efficiency ≥86%
-
Compact and lightweight: 154×60×36mm, only 450g
-
Certified by CE, UL, FCC, PSE, CCC for global safety compliance
-
Ideal for industrial, commercial, and consumer applications
-
Long service life with 30,000+ hours MTBF
-
3-year warranty for quality assurance
Description
QILIPOWER® QL1267000 12.6V 7A Li-ion Battery Charger for 3S 11.1V Lithium-ion, Lipo, and Rechargeable Batteries – High Efficiency, CE UL FCC Certified
Specification Overview
Technical Specifications of QILIPOWER® QL1267000 12.6V 7A 3S Li-ion Battery Charger
| Item | Specification | Remark |
|---|---|---|
| 1. Input | ||
| Rating input voltage | 100~240 Vac 50/60 Hz | |
| Input voltage range | 90~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V Output: Full load |
| Max input power | 92W | Input:100V Output: Full load |
| 2. Output | ||
| No load output voltage | DC 12.6 V | |
| Output voltage range | DC 11.10V ~ 12.60V | |
| Suit with battery type | 3S Li-ion battery | |
| Charging current | 7A ±10% | |
| Charging voltage | DC 12.6 V ±0.2 V | |
| Pre-charge | 0.7A ± 0.1A | Voltage ≤ 9V |
| Charge-end current | ≤1.2 A ±10% | |
| Timer | – | |
| Max output power | 76W | |
| Ripple voltage | ≤168mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off All on All flashing Flashing one by one |
No battery Finished Error Charging |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥86% | Full load @220V |
| 3. Environment | ||
| Operate temperature | -10 ~ +40℃ | |
| Operate humidity | < +90% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +95% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ / 600S | Non-operating condition |
| Impact resistance | 1 meter drop test 3 times | Non-operating condition |
| 4. Mechanical | ||
| Weight | 450g | |
| Size | 1546036mm | Casing only |
| Connector | Refer to order | |
| 5. Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE / TUV / FCC / PSE / CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) |
● Adapt for: 3S 11.1V Li-ion Battery, 18650 battery pack, lithium battery pack for robot, LED light packs, portable solar generator, electric scooter batteries, electric bike batteries, backup power units, power tool battery packs, handheld device packs, outdoor power supply units, consumer electronics, industrial Li-ion batteries, DIY battery systems, drone battery packs, smart toy batteries, medical equipment, telecom battery units, mobile POS battery banks, energy storage devices, and more.
● Customized Charger: Accept OEM/ODM, customizable housing, cable, plug, voltage, current, charging algorithm and LED indicator; private label and branding supported; welcome custom industrial battery charging solutions.
