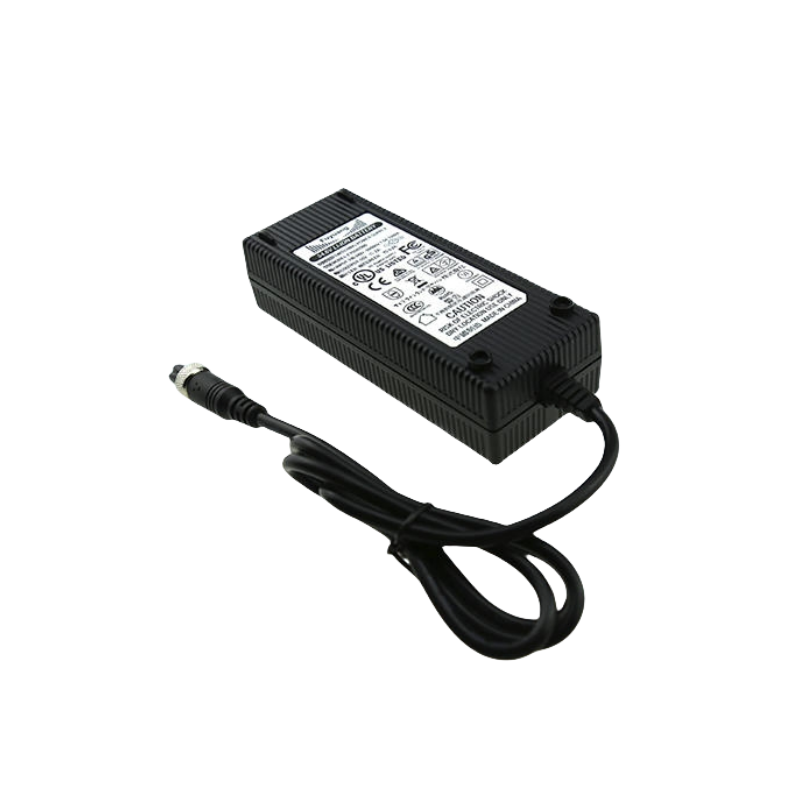

QL0848000 8.4V 8A Charger for 2S 7.4V Li-ion Battery
-
Designed for 2S 7.4V Li-ion, LIPO, and Lithium battery packs
-
8.4V 8A intelligent charging with auto cut-off
-
Charging stages: Pre-charge, Constant Current (CC), Constant Voltage (CV)
-
Dual-color LED indicators for power and charging status
-
Full protection: Over-voltage, Over-current, Short-circuit, Reverse polarity
-
Globally certified: CE, UL, FCC, TUV, PSE, SAA, RCM
Description
QILIPOWER® QL0848000 8.4V 8A Li-ion Battery Charger for 2S 7.4V LIPO Lithium Battery Packs – High Power, CE UL FCC SAA RCM Certified
Specification
QILIPOWER Li-ion battery charger, model QL0848000 8.4V 8A, is engineered for 2S 7.4V Li-ion, LIPO, and rechargeable lithium battery packs. With advanced charging control, robust protection circuitry, and high power output, it ensures fast, safe, and efficient charging. The compact yet powerful design meets multiple global certifications (CE, UL, FCC, TUV, PSE, CCC, SAA, RCM), making it ideal for applications in security systems, lighting, consumer electronics, and industrial battery packs.
Technical Specifications
| Item | Specification | Remark |
|---|---|---|
| Brand | QILIPOWER® | |
| Model | QL0848000 | |
| Warranty | 3 Years | |
| Adapt for | 2S 7.4V Li-ion / LIPO / Lithium battery packs | LED, security, lighting, electronics |
| Customized Charger | Available for voltage, current, connectors | OEM / ODM Supported |
| Input Voltage (Rated) | 100~240 Vac 50/60 Hz | |
| Input Voltage Range | 90~264 Vac | |
| Input Current | 1.0 A/RMS | Input: 100V, Full load |
| Max Input Power | 80 W | Input: 100V, Full load |
| No-load Output Voltage | DC 8.4 V | |
| Output Voltage Range | DC 7.4V ~ 8.4 V | |
| Charging Voltage | DC 8.4 V ±0.2 V | |
| Charging Current | 8 A ±10% | |
| Pre-charge Current | 0.2 A ±0.1 A | Voltage ≤ 6V |
| End Charge Current | ≤0.2 A ±10% | |
| Max Output Power | 68 W | |
| Ripple Voltage | ≤168 mV | Full load |
| LED – Power | Red | Power On |
| LED – Charging | Flashing one by one | Charging |
| All on | Finished | |
| All flashing | Error | |
| All off | No battery | |
| Protections | OVP, OCP, Short Circuit, Reverse Polarity | |
| Efficiency | ≥85% | Full load @220V |
| Operating Temperature | -10 ~ +40℃ | |
| Operating Humidity | <90% RH | |
| Storage Temperature | -40 ~ +70℃ | |
| Storage Humidity | 0 ~ +95% RH | |
| Cooling Method | Natural Air | |
| Vibration Resistance | 5mm / 50Hz / 600s | Non-operating condition |
| Drop Resistance | 1 meter drop test ×3 | Non-operating condition |
| Size | 133×58×31 mm | Casing only |
| Weight | 450g | Net |
| Connector Type | Refer to order | Customizable |
| Max Temperature Rise | <40℃ on casing | |
| Safety Approvals | CE, UL, FCC, TUV, PSE, CCC, SAA, RCM | Global certifications |
| MTBF | 30,000 hours | |
| ESD Resistance | 8.0 KV | |
| Hi-Pot Test | i/p to o/p: 3000V (1 minute) |
Adaptation & Customization
- Compatible with a wide range of 2S 7.4V Li-ion, LIPO, and Lithium battery applications including LED lighting systems, security cameras, smart home devices, industrial control systems, scanners, speakers, and rechargeable tools.
- Customization options include connector types, output voltage/current ranges, casing and heat dissipation designs, and private branding. OEM/ODM solutions are available for tailored battery charging projects.
