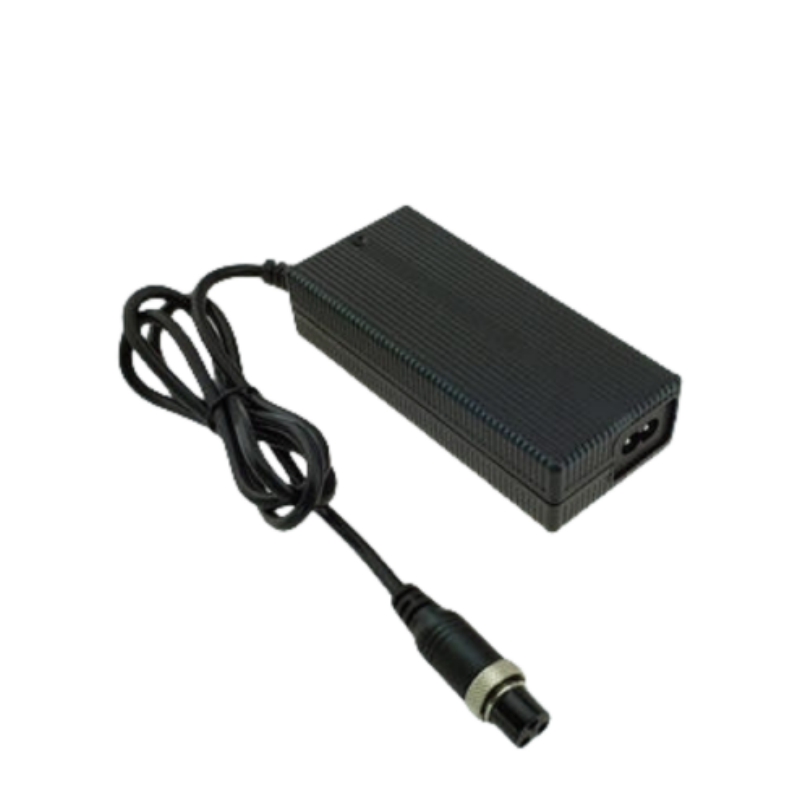

QL0845000 8.4V 5A Charger for 2S 7.4V Li-ion Battery
-
Designed for 2S 7.4V Li-ion, LIPO, and Lithium battery packs
-
8.4V 5A fast smart charging with automatic cut-off
-
Intelligent charging stages: Pre-charge, CC, CV
-
Dual-color LED indicator for status feedback
-
Protection: OVP, OCP, short circuit, reverse polarity
-
Certified by CE, UL, FCC, SAA, RCM for safe global usage
-
Compatible with a wide range of consumer and industrial lithium applications
Description
QILIPOWER® QL0845000 8.4V 5A 2S 7.4V Li-ion Battery Charger for LIPO Lithium Packs – CE UL FCC SAA RCM Certified
📊 Specification Overview
The Smart 8.4V 5A Li-ion Battery Charger Specifications (Model: QL0845000)
QILIPOWER – Intelligent charging solutions for lithium battery applications
📐 Technical Specifications
| Item | Specification | Remark |
|---|---|---|
| Brand | QILIPOWER® | — |
| Model | QL0845000 | — |
| Warranty | 3 Years | Standard warranty |
| Rating Input Voltage | 100~240Vac 50/60Hz | — |
| Input Voltage Range | 90~264Vac | — |
| Rating Input Current | 1.0A RMS | Input: 100V, full load |
| Max Input Power | 52W | — |
| No Load Output Voltage | DC 8.4V | — |
| Output Voltage Range | DC 7.4V~8.4V | — |
| Supported Battery Type | 2S Li-ion / LIPO / Lithium Battery | — |
| Charging Voltage | 8.4V ±0.2V | — |
| Charging Current | 5A ±10% | — |
| Pre-charge Current | 0.5A ±0.1A | Voltage ≤ 6V |
| Charge-end Current | ≤0.5A ±10% | — |
| Max Output Power | 45W | — |
| Ripple Voltage | ≤168mV | Full load |
| Charger Indicator | Red/Green LED | Status: power, charging, full, error |
| Protections | OVP, OCP, SCP, Reverse Polarity | — |
| Efficiency | ≥85% | Full load @220V |
| Operation Temp | -10℃ ~ +40℃ | — |
| Storage Temp | -40℃ ~ +70℃ | — |
| Cooling Method | Natural convection | — |
| Size | 133 × 58 × 31 mm | — |
| Net Weight | 400g | — |
| Certifications | CE, UL, FCC, SAA, RCM, TUV, PSE, CCC | Full compliance |
| Industry Application | Security systems, LED lighting, RC toys, robotics | — |
-
Adapt for: 2S 7.4V Li-ion / LIPO / Lithium battery packs, including wireless surveillance cameras, FPV drones, handheld vacuum cleaners, mini RC cars, Bluetooth audio systems, smart toys, e-scooters, backup lighting, POS terminals, and electric toothbrushes
-
Customized Charger Service Available
