14.6V 10A Smart Charger for 12V Lead-Acid Battery – Over-Voltage and Over-Current Protection -QILIPOWER
• The QL14610000 is a 14.6V 10A lead-acid battery charger for 1S 12V batteries.
• It features smart multi-stage charging with pre-charge, CC, and CV stages.
• Provides over-voltage, over-current, and reverse polarity protections.
• Certified with UL, CE, FCC, and TUV for safety.
• Compact design (178×80×46mm) and 800g weight.
• Works in temperatures from -10℃ to +40℃ and high humidity conditions.
Description
12V-14.6V 10A Lead-Acid Battery Charger Specifications (Model: QL14610000)

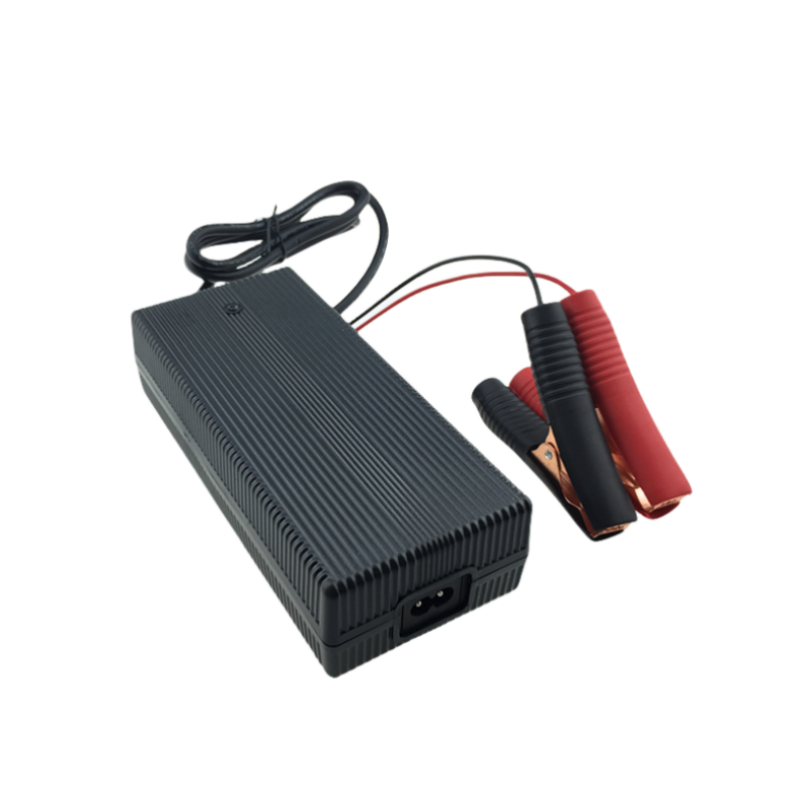

The QILIPOWER® QL14610000 is a 14.6V 10A lead-acid battery charger designed for efficient charging of 1S 12V lead-acid batteries including SLA, AGM, and Gel battery types. This charger features a multi-stage charging process, including pre-charge, constant current (CC), and constant voltage (CV) stages, ensuring safe and reliable charging. With built-in protections against over-voltage, over-current, and reverse polarity, this charger is equipped with global safety certifications like UL, CE, FCC, and TUV. The compact and lightweight design makes it ideal for both industrial and home use.
| Item | Specification | Remark |
|---|---|---|
| 1. Input | ||
| Rating input voltage | 100~240 Vac, 50/60 Hz | |
| Input voltage range | 90~264 Vac | |
| Rating input current | 1.0 A/RMS | Input: 100V, Output: Full load |
| Max input power | 176W | Input: 100V, Output: Full load |
| 2. Output | ||
| No load output voltage | DC 14.6V | |
| Output voltage range | DC 12V ~ 14.6V | |
| Charging current | 10A ±10% | |
| Charging voltage | DC 14.6V ±0.2 V | |
| Pre-charge | 1A ±0.4A | Voltage ≤10.8V |
| Charge-end current | ≤1.8A ±10% | |
| Suit with battery type | 1S 12V Lead-Acid Battery | |
| Timer | – | |
| Max output power | 146W | |
| Ripple voltage | ≤150mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off | No battery |
| All on (or Green on) | Charging finished | |
| All flashing | Error | |
| Flashing one by one | Charging | |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥86% | Full load @220V |
| 3. Environment | ||
| Operate temperature | -10 ~ +40℃ | |
| Operate humidity | < +90% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +95% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test 3 times | Non-operating condition |
| 4. Mechanical | ||
| Net Weight | 800g | |
| Size | 178×80×46mm | Casing only |
| Connector | Refer to order | |
| 5. Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE/TUV/FCC/PSE/CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) |
