29.2V 4A Smart Lead Acid Battery Charger For 2S 24V SLA / AGM / GEL / VRLA Battery – QILIPOWER
• Smart 29.2V 4A charger for 2S 24V lead-acid batteries
• Compatible with SLA, AGM, GEL, VRLA types
• Multi-stage charging: Pre-charge, CC, CV, Auto cut-off
• LED indicators for status display
• Protections: OVP, OCP, Short circuit, Reverse polarity
Description

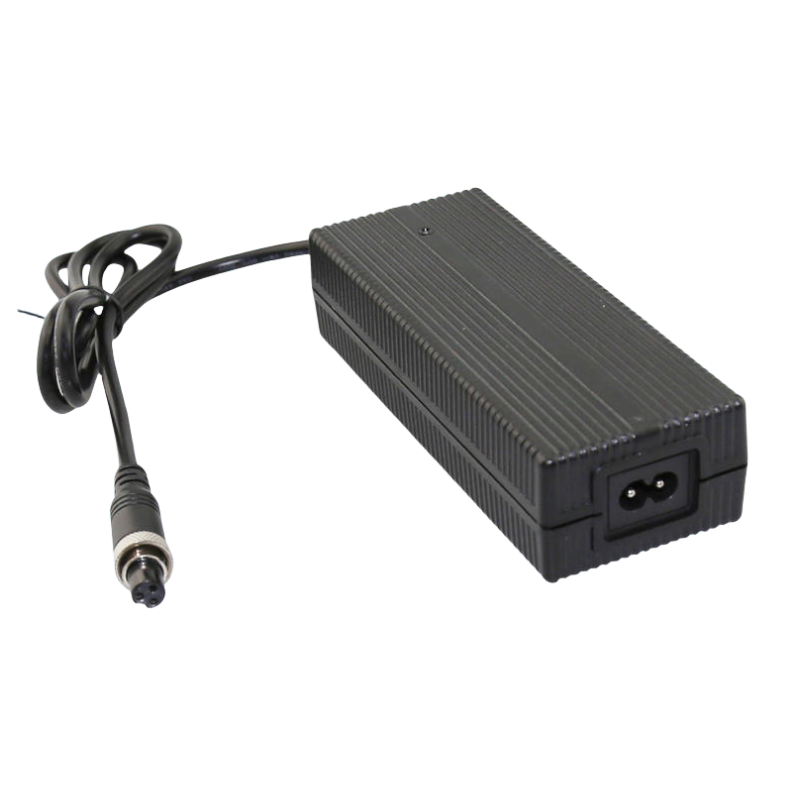

29.2V 4A Smart Lead Acid Battery Charger For 2S 24V SLA / AGM / GEL / VRLA Battery – QILIPOWER (Model: QL2924000)
QILIPOWER® 29.2V 4A smart lead acid battery charger designed for 2S 24V lead acid batteries, including SLA, AGM, GEL, and more. Featuring multi-stage intelligent charging and full electrical protections, it is a reliable choice in the Lead Acid Battery Charger category to ensure device stability and extend battery lifespan.
| Item | Specification | Remark |
|---|---|---|
| Brand | QILIPOWER | |
| Model | QL2924000 | |
| Input | ||
| Rated Input Voltage | 100~240 Vac, 50/60 Hz | |
| Input Voltage Range | 90~264 Vac | |
| Rated Input Current | 1.0 A RMS | Input: 100V, Output: Full Load |
| Maximum Input Power | 136W | Input: 100V, Output: Full Load |
| Output | ||
| No-load Output Voltage | DC 29.2V | |
| Output Voltage Range | DC 24V ~ 29.2V | |
| Charging Current | 4A ±10% | |
| Charging Voltage | DC 29.2V ±0.2V | |
| Pre-charge Current | 0.4A ±10% | Voltage ≤21.6V |
| Charge-end Current | ≤0.8A ±10% | |
| Suitable Battery Type | 2S 24V Lead Acid Battery | SLA / AGM / GEL / VRLA / WET |
| Max Output Power | 116.8W | |
| Ripple Voltage | ≤300mV | Full Load |
| Charger Indicator | Red: Power on; Green: Fully Charged; Flashing: Charging/Error | Detailed status explanation |
| Short Circuit Protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Efficiency | ≥86% | Full Load @ 220V |
| Environment | ||
| Operating Temperature | -10 ~ +40℃ | |
| Operating Humidity | < 90% RH | |
| Storage Temperature | -40 ~ +70℃ | |
| Storage Humidity | 0 ~ 95% RH | |
| Cooling Method | Natural Cooling | |
| Vibration Resistance | 5MM / 50HZ / 600S | Non-operating condition |
| Impact Resistance | 1-meter drop test, 3 times | Non-operating condition |
| Mechanical | ||
| Net Weight | 450g | |
| Dimensions | 154×60×36mm | Casing only |
| Connector | Customized | Per order |
| Safety | ||
| Max Temperature Rise | < 40℃ on casing | |
| Safety Certifications | CE / TUV / FCC / PSE / CCC | |
| MTBF | 30,000 hours | |
| ESD Protection | 8.0 KV | |
| Hi-Pot Insulation | Input to output: 3000V (1 min) |
- Customized options available. Please contact us for inquiries.
