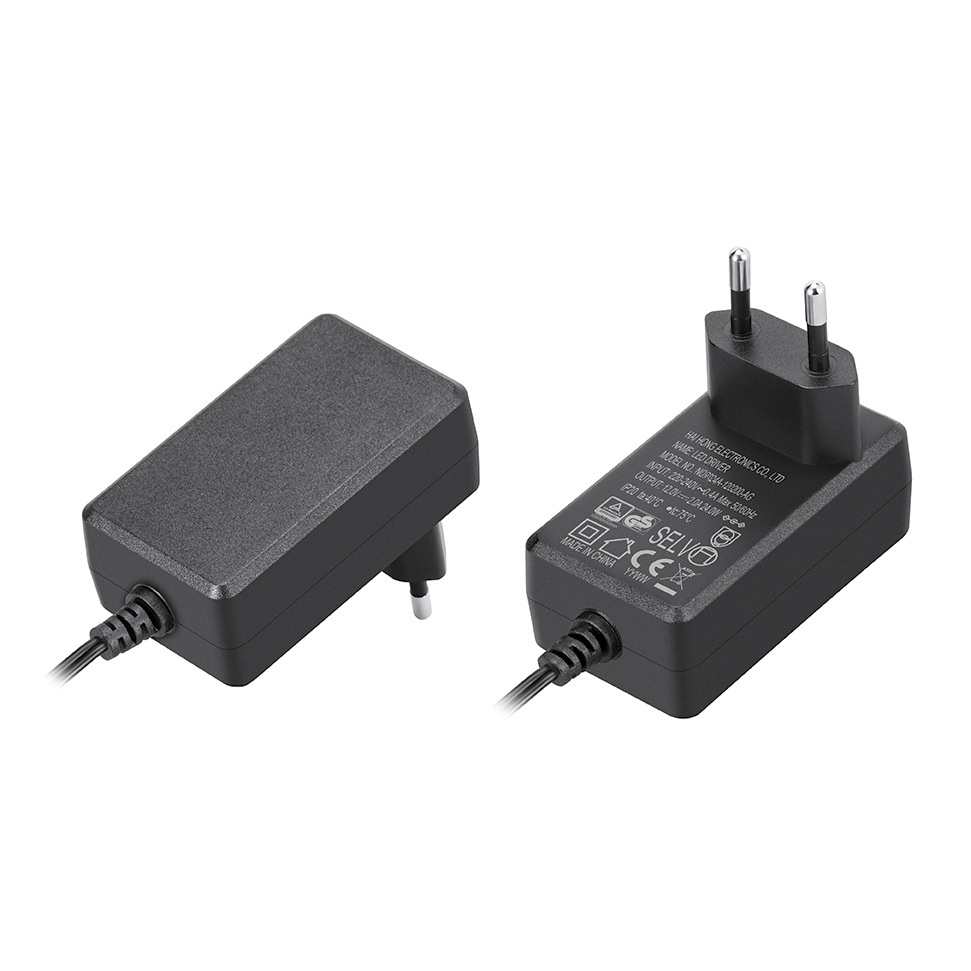

29.2V 1A Smart Lead-Acid Battery Wallplug Charger for 2S 24V SLA / AGM / GEL / VRLA Battery – QILIPOWER QL2401000
-
Designed specifically for 2S 24V lead acid batteries, including SLA, AGM, and GEL types.
-
Supports multi-stage intelligent charging to optimize battery health.
-
Equipped with multiple protections, including over-voltage, over-current, short circuit, and reverse polarity.
-
Compact and lightweight design with natural cooling for safe operation.
-
Certified with CE, TUV, FCC, PSE, and CCC for global safety standards.
Description
29.2V 1A Smart Lead Acid Battery Wall plug Charger for 2S 24V SLA / AGM / GEL / VRLA Battery – QILIPOWER (Model: QL2401000)
The QILIPOWER® 29.2V 1A smart lead-acid battery charger is designed for 2S 24V lead-acid batteries, including SLA, AGM, GEL, and more. Featuring multi-stage intelligent charging and comprehensive electrical protections, it is an ideal choice in the lead-acid battery charger category to ensure stable device operation and extend battery life.
| Item | Specification | Remarks |
|---|---|---|
| Input | ||
| Rated Input Voltage | 100~240 Vac, 50/60 Hz | |
| Input Voltage Range | 90~264 Vac | |
| Rated Input Current | 1.0 A RMS | Input: 100V Output: Full Load |
| Maximum Input Power | 30W | Input: 100V Output: Full Load |
| Output | ||
| No-load Output Voltage | DC 29.2V | |
| Output Voltage Range | DC 24V ~ 29.2V | |
| Charging Current | 1A ±10% | |
| Charging Voltage | DC 29.2V ±0.2V | |
| Pre-charge Current | 0.2A ±10% | Voltage ≤21.6V |
| Charge-end Current | ≤0.4A ±10% | |
| Suitable Battery Type | 2S 24V Lead Acid Battery | SLA / AGM / GEL / VRLA / WET |
| Max Output Power | 30W | |
| Ripple Voltage | ≤300 mV | Full Load |

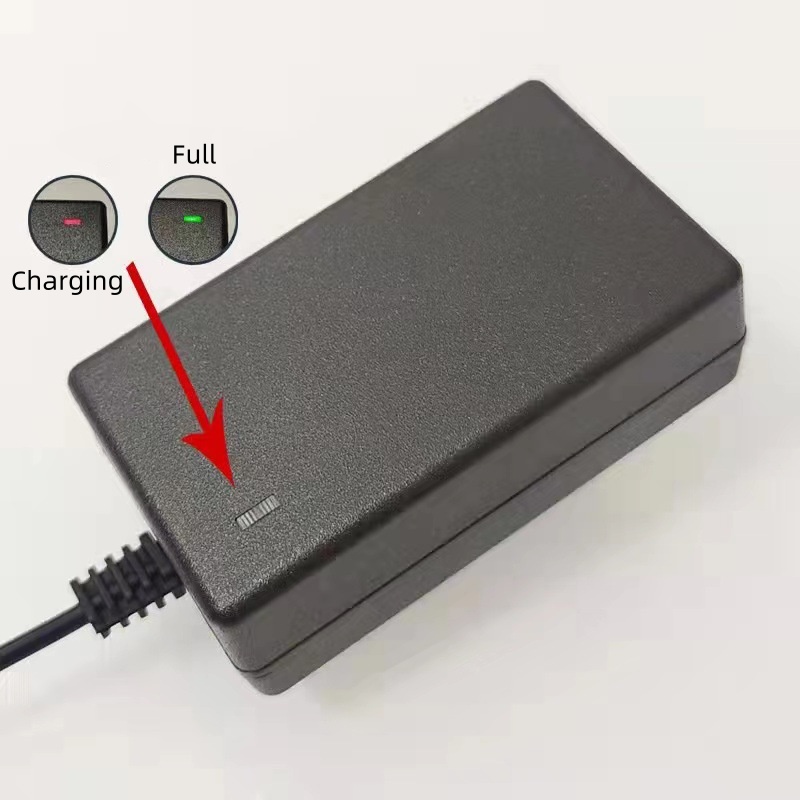

| Charger Indicator | Red: Power on; Green: Fully Charged; Flashing: Charging/Error | Detailed Status Explanation |
| Short Circuit Protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Efficiency | ≥86% | Full Load @ 220V |
| Environment | ||
| Operating Temperature | -10 ~ +40℃ | |
| Operating Humidity | < 90% RH | |
| Storage Temperature | -40 ~ +70℃ | |
| Storage Humidity | 0 ~ 95% RH | |
| Cooling Method | Natural Cooling | |
| Vibration Resistance | 5MM / 50HZ / 600S | Non-operating Condition |
| Impact Resistance | 1-meter drop test, 3 times | Non-operating Condition |
| Mechanical | ||
| Net Weight | 120 g | |
| Dimensions | 74*38*21mm | Casing only |
| Connector | Customizable | Per order |
| Safety | ||
| Max Temperature Rise | < 40℃ on casing | |
| Safety Certifications | CE / TUV / FCC / PSE / CCC | |
| MTBF | 30,000 hours | |
| ESD Protection | 8.0 KV | |
| Hi-Pot Insulation | Input to output: 3000 V (1 min) |
- Customized requirements will be welcomed; please contact us to inquire.
