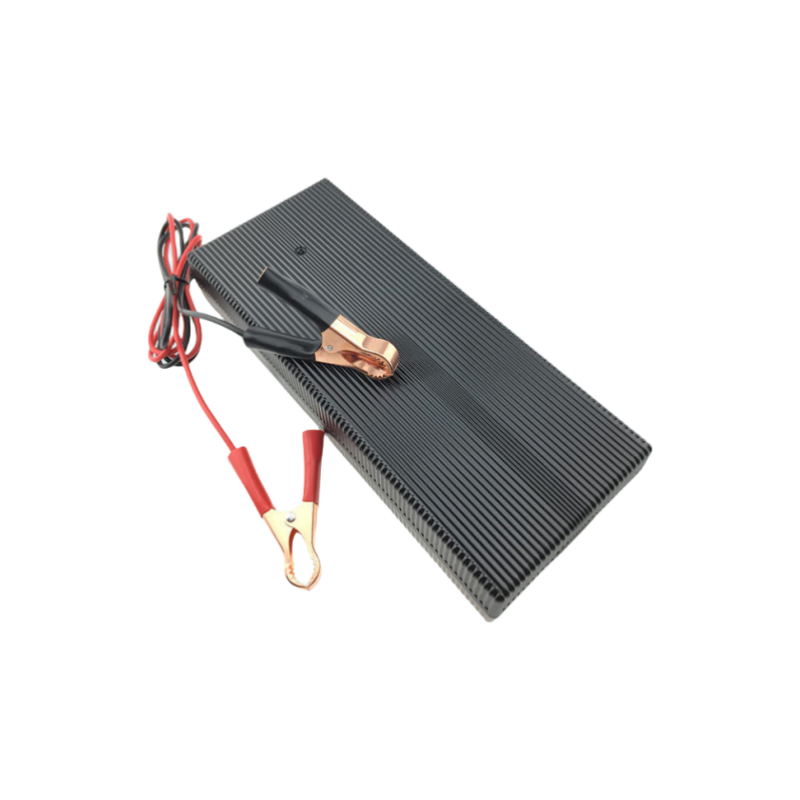

14.6V 15A Lead-Acid Battery Charger for 12V SLA AGM GEL VRLA WET Batteries – High Efficiency, CE UL FCC Certified -QILIPOWER QL14615000
• QILIPOWER® QL14615000 15A charger for SLA, AGM, GEL, VRLA, WET batteries.
• High-efficiency charging with CE, UL, FCC, TUV certifications.
• Multiple protections: over-voltage, over-current, short circuit, reverse polarity.
• Compact design for industrial and home use.
• Reliable and safe charging for 12V lead-acid batteries.
• Quick and efficient performance with minimal ripple voltage.
Description
The Smart 14.6V 15A Charger For 12V Lead-Acid Battery Specifications (Model: QL14615000)
The QILIPOWER® QL14615000 is a high-efficiency, 15A lead-acid battery charger designed for SLA, AGM, GEL, VRLA, and WET batteries. Featuring smart multi-stage charging and advanced protections, it ensures safe and reliable charging for all 1S 12V lead-acid battery types. This charger is certified by CE, UL, FCC, and TUV, making it ideal for both industrial and home use.
| Item | Specification | Remark |
|---|---|---|
| Brand | QILIPOWER® | |
| Model | QL14615000 | |
| AC Input Voltage | 150~240V, 50/60Hz | |
| Input Voltage Range | 90~264V | |
| Input Current | 1.0 A RMS | At 150V input, full load |
| Max Input Power | 240W | At 150V input, full load |
| DC Output Voltage | 14.6V | |
| Output Voltage Range | 12V ~ 14.6V | |
| Charging Current | 15A ±15% | |
| Charging Voltage | 14.6V ±0.2V | |
| Pre-Charge Current | 1.5A ± 0.4A | Voltage ≤ 10.8V |
| Charge-End Current | ≤ 3A ±15% | |
| Suitable Battery Type | 1S 12V Lead-Acid Battery, SLA, AGM, GEL, VRLA, WET | |
| Max Output Power | 219W | |
| Ripple Voltage | ≤150mV | At full load |
| Charging Indicators | Red LED: Power ON All off: No battery All on (or Green): Charging complete All flashing: Error Flashing one by one: Charging |
|
| Protections | Over Voltage, Over Current, Short Circuit, Reverse Polarity | |
| Efficiency | ≥89% | At full load, 215V input |
| Operating Temperature | -15℃ to +40℃ | |
| Operating Humidity | <90% Relative Humidity | |
| Storage Temperature | -40℃ to +70℃ | |
| Storage Humidity | 0 to 95% Relative Humidity | |
| Cooling Method | Natural Air Cooling | |
| Vibration Resistance | 5mm / 50Hz / 600s | Non-operating condition |
| Impact Resistance | 1 meter drop test (3 times) | Non-operating condition |
| Dimensions | 233 x 108 x 64 mm | Charger casing only |
| Net Weight | 1900g | |
| Connector | Customized per order | |
| Safety Certifications | CE, UL, TUV, FCC, PSE, CCC | |
| Maximum Temperature Rise | <40℃ on casing | |
| MTBF | 30,000 hours | |
| ESD Protection | 8.0 KV | Electrostatic Discharge protection |
| Hi-Pot Insulation | Input to output: 3000V (1 min) | Ensures insulation safety |
This charger offers the ultimate peace of mind with its reliable protections and certifications, making it an ideal choice for various battery-powered applications.
