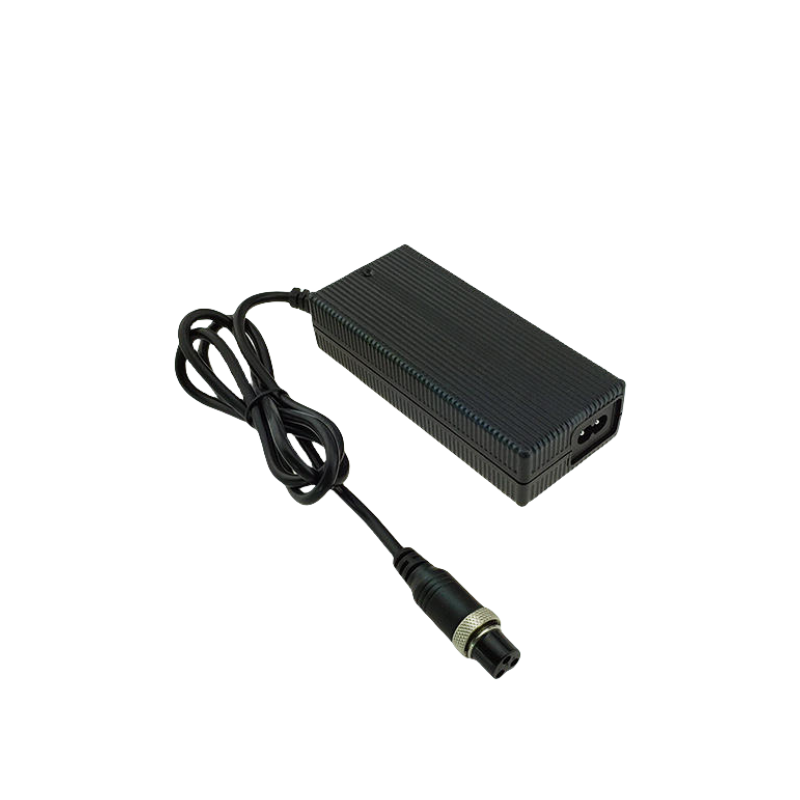

QL4381500 43.8V 1.5A Charger for 36V Lead-Acid Battery
-
Designed for 3S 36V SLA, AGM, GEL, VRLA, and WET lead-acid batteries
-
Intelligent 4-stage charging: Pre-charge, CC, CV, and auto cut-off
-
Output: 43.8V 1.5A with high charging efficiency (≥86%)
-
Multiple protections: OVP, OCP, short-circuit, and reverse polarity
-
Dual-color LED indicators for charging status
-
Compact size: 113×44×31mm, lightweight at 320g
-
Certified by CE, UL, FCC, TUV, PSE, and CCC
-
3-year warranty with global door-to-door delivery service
Description
QL4381500 43.8V 1.5A Charger for 36V Lead-Acid Battery Specification
- Brand: QILIPOWER®，
- Model: QL4381500，
- QL4381500 43.8V 1.5A Charger for 36V Lead-Acid Battery with 3S 36V SLA, AGM, GEL, VRLA, and WET lead-acid batteries, featuring multi-stage charging, multiple protection functions, and international safety certifications.
43.8V 1.5A Lead-Acid Battery Charger for 3S 36V SLA AGM GEL VRLA WET Batteries – CE UL FCC Certified |
||
| Item | Specification | Remark |
| 1.Input | ||
| Rating input voltage | 100~240 Vac, 50/60 Hz | |
| Input voltage range | 90~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V
Output: Full load |
| Max input power | 75W | Input:100V
Output: Full load |
| 2.Output | ||
| No load output voltage | ||
| Output voltage range | DC36V ~ 43.8V | |
| Charging current | 1.5A ±10% | |
| Charging voltage | DC 43.8V ±0.2 V | |
| Pre-charge | 0.15A ± 10% | Voltage≤32.4V |
| Charge-end current | ≤0.3A±10% | |
| Suit with battery type | 3S 36V Lead-acid Battery | |
| Timer | – | |
| Max output power | 65.7W | |
| Ripple voltage | ≤440mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off | No battery |
| All on (or Green on) | Finished | |
| All flashing | Error | |
| Flashing one by one | Charging | |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥86% | Full load @220V |
| 3.Environment | ||
| Operate temperature | -10 ~ +40℃ | |
| Operate humidity | < +90% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +95% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test 3 times | Non-operating condition |
| 4.Mechanical | ||
| Net Weight | 320g | |
| Size | 113*44*31mm | Casing only |
| Connector | Refer to order | |
| 5.Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE/TUV/FCC/PSE/CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) | |
