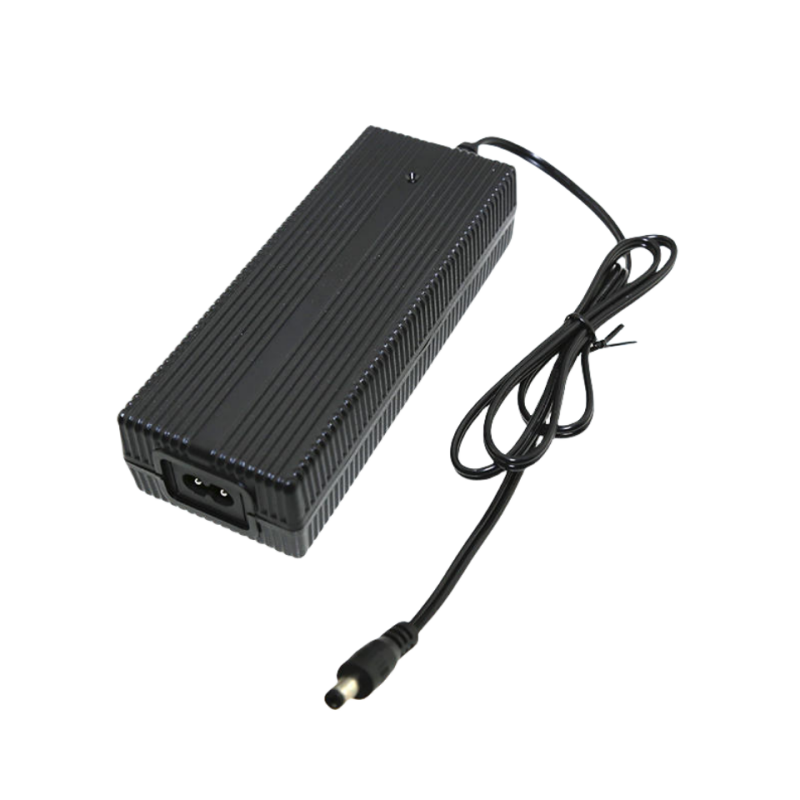

QL1686000 16.8V 6A Charger for 4S 14.8V Li-ion Battery
-
Designed for 4S 14.8V Li-ion, Lipo, and Lithium batteries
-
High-efficiency 16.8V 6A output with automatic CC/CV cut-off
-
Dual-color LED indicator: Red (charging), Green (full), Flash (error)
-
Built-in protections: OVP, OCP, Short Circuit, Reverse Polarity
-
CE, UL, TUV, FCC, PSE, CCC certified for global safety compliance
-
Compact size: 154×60×36mm; Weight: 450g
-
Accepts 100–240V AC input for worldwide use
-
3-Year Warranty from QILIPOWER
Description
QILIPOWER® QL1686000 16.8V 6A Li-ion Battery Charger for 4S 14.8V Lipo Lithium Batteries – CE UL FCC Certified
Technical Specifications
16.8V 6A Li-ion Battery Charger Specifications (Model: QL1686000)
Suitable for 4S 14.8V Li-ion / Lipo battery packs with intelligent safety and charging features.
| Item | Specification | Remark |
|---|---|---|
| 1. Input | ||
| Rating input voltage | 100~240 Vac 50/60 Hz | |
| Input voltage range | 90~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V, Output: Full load |
| Max input power | 119W | Input:100V, Output: Full load |
| 2. Output | ||
| No load output voltage | DC 16.8 V | |
| Output voltage range | DC 14.8V ~ 16.8V | |
| Charging current | 6A ±10% | |
| Charging voltage | DC 16.8 V ±0.2 V | |
| Pre-charge current | 0.6A ± 0.1A | Voltage ≤12V |
| Charge-end current | ≤1.2A ±10% | |
| Battery compatibility | 4S Li-ion Battery | |
| Timer | – | |
| Max output power | 100.8W | |
| Ripple voltage | ≤168mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off: No battery All on / Green: Finished All flashing: Error Flashing one by one: Charging |
|
| Short circuit protection | Yes | |
| Reverse polarity protection | Yes | |
| Efficiency | ≥89% | Full load @220V |
| 3. Environment | ||
| Operating temperature | -10 ~ +40℃ | |
| Operating humidity | < +90% RH | |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +95% RH | |
| Cooling method | Natural | |
| Vibration resistance | 5MM / 50HZ / 600S | Non-operating condition |
| Impact resistance | 1 meter drop test ×3 | Non-operating condition |
| 4. Mechanical | ||
| Net weight | 450g | |
| Size | 154×60×36MM | Casing only |
| Connector | Refer to order | |
| 5. Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approvals | CE, TUV, FCC, PSE, CCC | |
| MTBF | 30,000 Hrs | |
| ESD protection | 8.0 KV | |
| Hi-Pot insulation | i/p to o/p: 3000V (1 min) |
-
Adaptor for: 4S 14.8V Li-ion Battery, Lipo battery, Lithium-ion battery
-
Customized Charger: Acceptable
