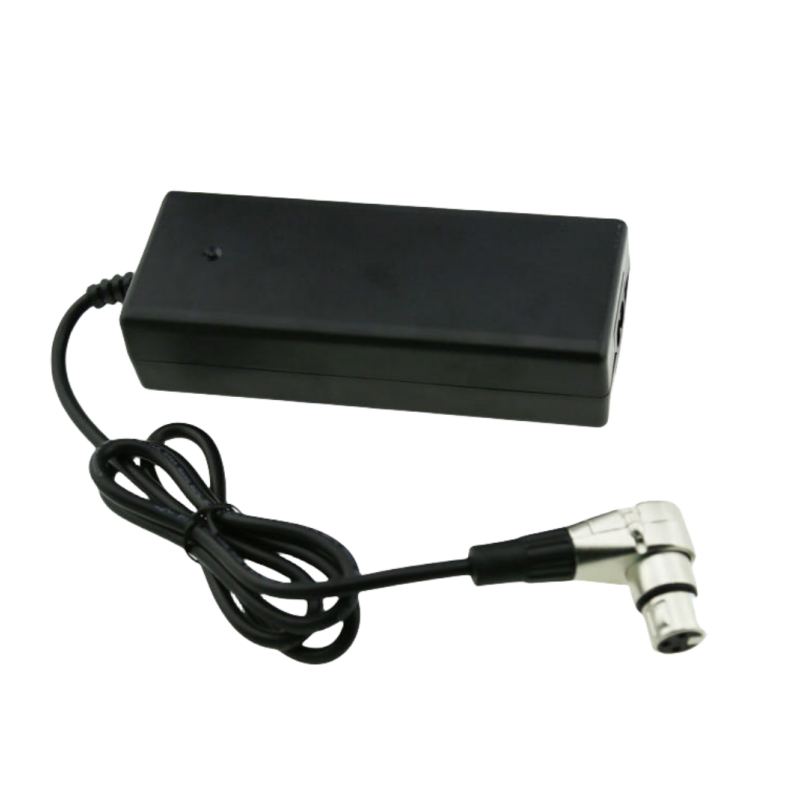

QL1268000 12.6V 8A Charger for 3S 11.1V Li-ion Battery
-
High-performance 12.6V 8A Li-ion charger for 3S 11.1V packs
-
Smart charging: pre-charge, constant current, constant voltage, auto cut-off
-
Dual-color LED shows power and charging status clearly
-
Full protections: over-voltage, over-current, short circuit, reverse polarity
-
Energy efficient with ≥86% conversion rate
-
Compact size: 154×60×36mm, only 450g
-
CE, UL, FCC, PSE, TUV, CCC certified for safety and compliance
-
Rugged design with impact and vibration resistance
-
Reliable for industrial and consumer-grade lithium power
-
Covered by 3-year manufacturer warranty
Description
QILIPOWER® QL1268000 12.6V 8A Li-ion Battery Charger for 3S 11.1V Lithium Battery Packs – CE UL FCC Certified
Technical Specifications
| Item | Specification | Remark |
|---|---|---|
| Brand | QILIPOWER® | |
| Model | QL1268000 | |
| Warranty | 3 Years | |
| 1. Input | ||
| Rating input voltage | 100~240 Vac 50/60 Hz | |
| Input voltage range | 90~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V Output: Full load |
| Max input power | 121W | Input:100V Output: Full load |
| 2. Output | ||
| No load output voltage | DC 12.6 V | |
| Output voltage range | DC 11.10V~12.60V | |
| Suit with battery type | 3S Li-ion battery | |
| Charging voltage | DC 12.6 V ±0.2 V | |
| Charging current | 8A ±10% | |
| Pre-charge | 0.8A ± 0.1A | Voltage ≤ 9V |
| Charge-end current | ≤1.5 A±10% | |
| Max output power | 100.8W | |
| Ripple voltage | ≤168mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off / All on / All flash / Sequential flash | No battery / Finished / Error / Charging |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥86% | Full load @220V |
| 3. Environment | ||
| Operate temperature | -10 ~ +40℃ | |
| Operate humidity | < +90% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +95% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test x3 | Non-operating condition |
| 4. Mechanical | ||
| Weight | 450g | |
| Size | 154×60×36mm | Casing only |
| Connector | Refer to order | |
| 5. Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE / TUV / FCC / PSE / CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) |
● Adaptor for:
3S 11.1V Lithium Battery, 3S Lipo Battery, 3S Li-ion Battery, 11.1V 18650 Battery Pack, RC Battery Pack, Portable Power Pack, LED Light Battery, Industrial Robot Battery, Drone Battery, E-bike Battery (11.1V), Scooter Battery, 11.1V POS Terminal Battery, 3S Backup Battery, Wireless Device Battery, Medical Device Battery, Security System Battery, Testing Instrument Battery, DIY Lithium Battery, Battery with PCM/BMS, Custom 11.1V Battery Modules, Power Tool Battery
● Customized Charger:
OEM & ODM customization supported. Charger case, labels, connectors, and parameters (voltage/current) can be tailored to customer requirements. Branding and color customization are welcome for bulk orders. Fast prototyping available.
