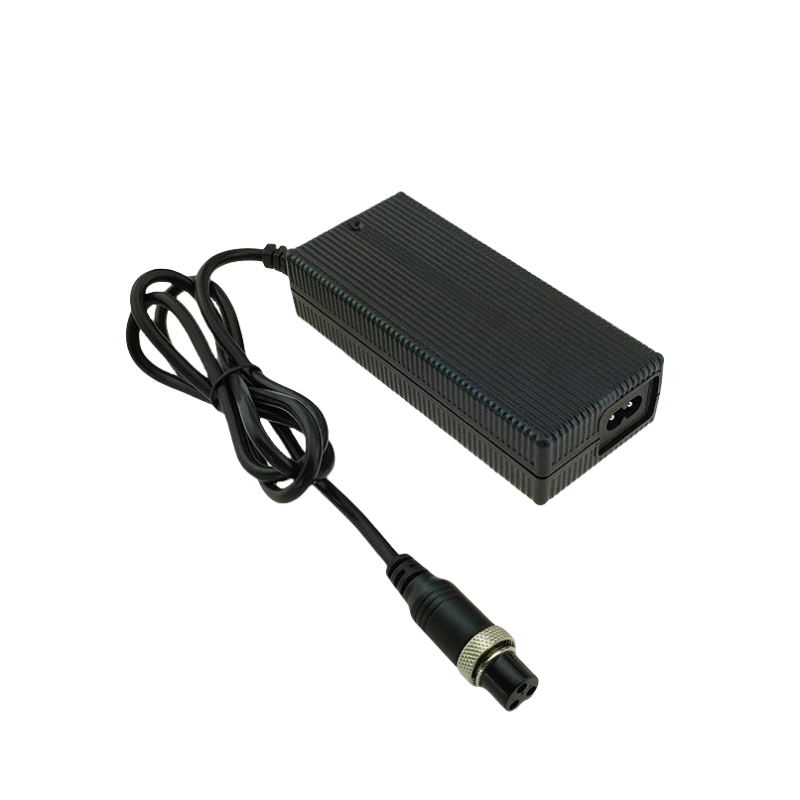

QL1265000 12.6V 5A Charger for 3S 11.1V Li-ion Battery
-
Designed for 3S 11.1V Li-ion and LIPO battery packs
-
Delivers 12.6V 5A fast charging with high accuracy
-
Advanced 4-stage charging with automatic cutoff
-
Dual-color LED indicators for real-time status display
-
Integrated protections: OVP, OCP, Short Circuit, Reverse
-
Fully certified: CE, UL, FCC, TUV, PSE, CCC, SAA, RCM
Description
QILIPOWER® QL1265000 12.6V 5A Li-ion Battery Charger
for 3S 11.1V LIPO Lithium Battery Packs
– High Efficiency, CE UL FCC SAA RCM Certified
Specification
QILIPOWER Li-ion battery charger model QL1265000 delivers stable 12.6V 5A output for 3S 11.1V Li-ion/LIPO batteries. It features an intelligent 4-stage charging process (Pre-charge, Constant Current, Constant Voltage, Auto Cut-off), integrated dual-color LED indicators, and complete protection circuits. Certified by CE, UL, FCC, TUV, PSE, CCC, SAA, RCM, it is suitable for security systems, LED lighting, and portable electronics.
Technical Specifications
| Item | Specification | Remark |
|---|---|---|
| Brand | QILIPOWER® | |
| Model | QL1265000 | |
| Warranty | 3 Years | |
| Adapt for | 3S 11.1V Li-ion / LIPO / Lithium battery packs | Security, Lighting, Electronics |
| Customized Charger | Available for voltage, current, connectors | OEM / ODM Supported |
| Input Voltage (Rated) | 100~240 Vac 50/60 Hz | |
| Input Voltage Range | 90~264 Vac | |
| Input Current | 1.0 A/RMS | Input: 100V, Full load |
| Max Input Power | 76 W | Input: 100V, Full load |
| No-load Output Voltage | DC 12.6 V | |
| Output Voltage Range | DC 11.1V ~ 12.6 V | |
| Charging Voltage | DC 12.6 V ±0.2 V | |
| Charging Current | 5 A ±10% | |
| Pre-charge Current | 0.5 A ±0.1 A | Voltage ≤ 9V |
| End Charge Current | ≤0.5 A ±10% | |
| Max Output Power | 63 W | |
| Ripple Voltage | ≤168 mV | Full load |
| LED – Power | Red | Power On |
| LED – Charging | Flashing one by one | Charging |
| All on | Finished | |
| All flashing | Error | |
| All off | No battery | |
| Protections | OVP, OCP, Short Circuit, Reverse Polarity | |
| Efficiency | ≥86% | Full load @220V |
| Operating Temperature | -10 ~ +40℃ | |
| Operating Humidity | <90% RH | |
| Storage Temperature | -40 ~ +70℃ | |
| Storage Humidity | 0 ~ +95% RH | |
| Cooling Method | Natural Air | |
| Vibration Resistance | 5mm / 50Hz / 600s | Non-operating condition |
| Drop Resistance | 1 meter drop test ×3 | Non-operating condition |
| Size | 133×58×30 mm | Casing only |
| Weight | 350g | Net |
| Connector Type | Refer to order | Customizable |
| Max Temperature Rise | <40℃ on casing | |
| Safety Approvals | CE, UL, FCC, TUV, PSE, CCC, SAA, RCM | Global certifications |
| MTBF | 30,000 hours | |
| ESD Resistance | 8.0 KV | |
| Hi-Pot Test | i/p to o/p: 3000V (1 minute) |
Adaptation & Customization
-
Compatible with a wide range of 3S 11.1V Li-ion, LIPO, and Lithium battery applications such as lighting equipment, monitoring devices, smart home systems, and handheld tools.
-
Support for custom connectors, voltage/current configurations, and private-label OEM solutions.
