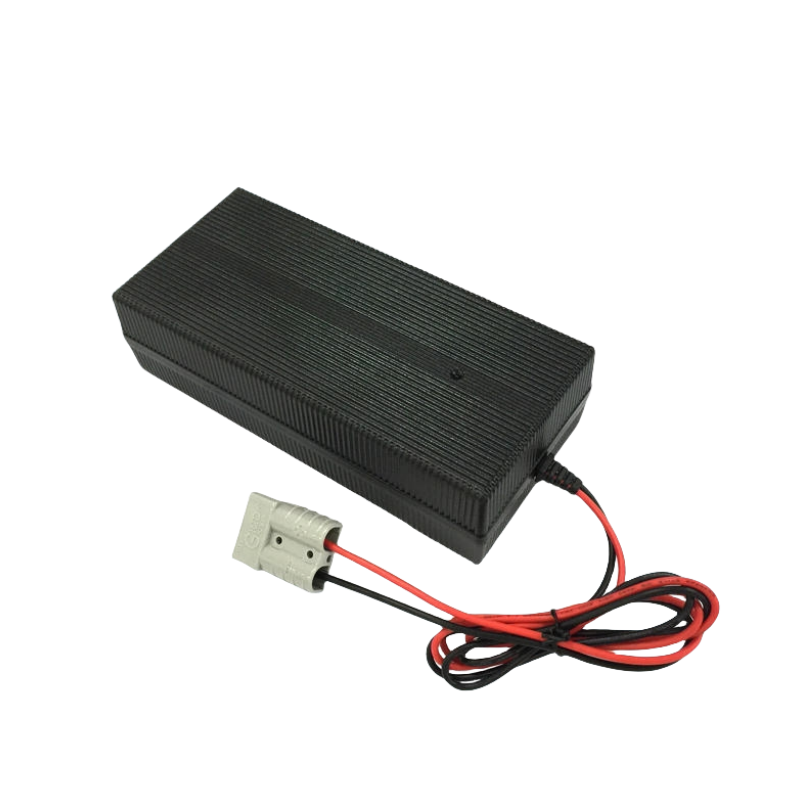

QL12615000 12.6V 15A Charger for 3S 11.1V Li-ion Battery
• 12.6V 15A Li-ion charger optimized for 3S 11.1V lithium battery systems
• Intelligent charging: Pre-charge, CC, CV, and automatic cut-off
• Dual-color LED indicators display real-time charge status
• Integrated safety features: OVP, OCP, short circuit, reverse polarity
• CE, UL, FCC, TUV, PSE, CCC certified with 3-year warranty
Description
QILIPOWER® QL12615000 12.6V 15A Li-ion Battery Charger for 3S 11.1V Lithium-ion/LIPO Batteries – CE UL FCC Certified
Technical Specifications
The Smart 12.6V 15A Li-ion Battery Charger Specifications (Model: QL12615000)
QILIPOWER® – Trusted Charging Solutions for Lithium Battery Systems Worldwide
| Item | Specification | Remark |
|---|---|---|
| Brand | QILIPOWER® | — |
| Model | QL12615000 | — |
| Warranty | 3 Years | Standard warranty |
| Input | ||
| Rating Input Voltage | 100~240V AC, 50/60Hz | Global voltage support |
| Input Voltage Range | 90~264V AC | — |
| Rated Input Current | 1.0A RMS | At 100V, full load |
| Max Input Power | 215W | — |
| Output | ||
| No Load Voltage | DC 12.6V | — |
| Output Voltage Range | 11.1V~12.6V | Constant voltage mode |
| Charging Voltage | 12.6V ± 0.2V | Optimized for 3S Li-ion |
| Charging Current | 15A ± 10% | Fast charge |
| Pre-charge Current | 1.5A ± 0.1A | Activated <9V battery voltage |
| Charge Termination Current | ≤3A ± 10% | Auto cut-off |
| Max Output Power | 189W | — |
| Ripple Voltage | ≤168mV | Full load |
| Charging Indicators | ||
| Power LED | Red | Power ON |
| Charging Status | Flashing One-by-One | Charging |
| All On | Fully charged | |
| All Off | No battery | |
| All Flashing | Error | |
| Protection Features | ||
| Over Voltage | Yes | — |
| Over Current | Yes | — |
| Short Circuit | Yes | — |
| Reverse Polarity | Yes | — |
| Environment | ||
| Operating Temperature | -10 ~ +40°C | — |
| Operating Humidity | <90% RH | — |
| Storage Temperature | -40 ~ +70°C | — |
| Storage Humidity | 0 ~ 95% RH | — |
| Cooling | Natural air cooling | — |
| Vibration Resistance | 5mm / 50Hz / 600s | Non-operating |
| Drop Resistance | 1 meter × 3 times | Non-operating |
| Mechanical Details | ||
| Dimensions | 233 × 108 × 64 mm | Casing only |
| Weight | 1500g | Net |
| Connector Type | Custom per order | — |
| Safety & Reliability | ||
| Max Case Temperature Rise | <40°C | At full load |
| Safety Certifications | CE, UL, FCC, TUV, PSE, CCC | Global approvals |
| MTBF | ≥30,000 hours | High reliability |
| ESD Protection | 8.0KV | IEC standard |
| Hi-Pot Insulation Test | 3000V AC (1 min) | Input to output |
• Adaptor for: 3S 11.1V Li-ion / LIPO battery packs，3S 11.1V Li-ion / LIPO battery packs used in drone batteries, RC cars, electric scooters, hoverboards, LED light panels, mobile medical devices, robot power systems, solar storage systems, wireless surveillance cameras, e-bikes (3S systems), handheld vacuum cleaners, portable power stations, industrial sensors, wearable devices, POS machines, smart toys, rechargeable tools, mini UPS systems, small electric boats, and inspection robots.
• Customized Charger: Plug type, shell, and output connector options available upon request
