29.2V 7A Smart Charger for 2S 24V Lead-acid Battery – QILIPOWER
-
Reliable 29.2V 7A smart charger for 2S 24V lead-acid batteries.
-
Pre-charge, CC, CV, automatic cut-off for safe charging.
-
Multi-protections: OVP, OCP, short circuit, reverse polarity.
-
Compatible with SLA, AGM, GEL, VRLA, and wet batteries.
-
CE, UL, TUV, FCC, PSE, CCC certified.
-
3-year warranty.
-
Customizable.
Description

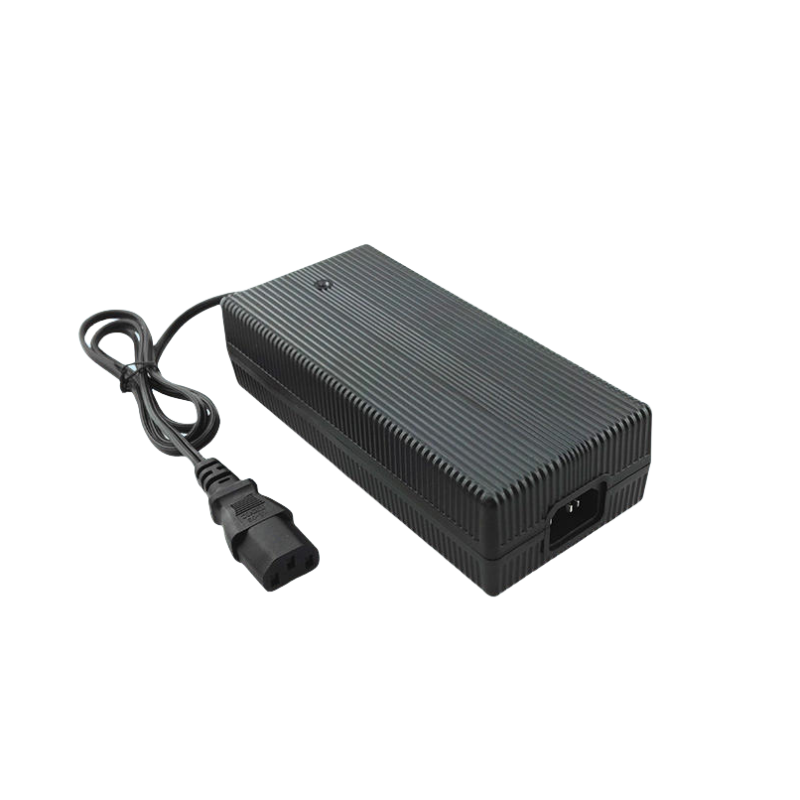

29.2V 7A Smart Charger for 2S 24V Lead-Acid Battery – QILIPOWER
The Reliable Factory | Manufacturer | Custom-Made
QILIPOWER® 29.2V 7A charger is designed for 2S 24V lead-acid batteries, including SLA, AGM, GEL, VRLA, and wet types. It features smart charging with multi-stage protection and LED indicators, ensuring safe and efficient power delivery.
Table description: This table details the key specifications and features of the QILIPOWER QL2927000 smart charger, highlighting its input/output ratings, protections, environmental adaptability, mechanical size, and safety certifications. Ideal for those seeking reliable and high-efficiency lead-acid battery charging solutions.
| Item | Specification | Remark |
|---|---|---|
| 1. Input | ||
| Rating input voltage | 100~240 Vac, 50/60 Hz | |
| Input voltage range | 90~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V Output: Full load |
| Max input power | 235W | Input:100V Output: Full load |
| 2. Output | ||
| No load output voltage | DC 29.2V | |
| Output voltage range | DC 24V ~ 29.2V | |
| Charging current | 7A ±10% | |
| Charging voltage | DC 29.2V ±0.2 V | |
| Pre-charge | 0.7A ± 10% | Voltage ≤21.6V |
| Charge-end current | ≤1.4A ±10% | |
| Suitable battery type | 2S 24V Lead-acid Battery | |
| Timer | – | |
| Max output power | 204W | |
| Ripple voltage | ≤300mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off | No battery |
| All on (or Green on) | Finished | |
| All flashing | Error | |
| Flashing one by one | Charging | |
| Shorted protection | Yes | |
| Reversed protection | Yes | |
| Efficiency | ≥87% | Full load @220V |
| 3. Environment | ||
| Operating temperature | -10 ~ +40℃ | |
| Operating humidity | < +90% Relative humidity | |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +95% Relative humidity | |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test 3 times | Non-operating condition |
| 4. Mechanical | ||
| Net weight | 850g | |
| Size | 178×80×46mm | Casing only |
| Connector | Refer to order | |
| 5. Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE / TUV / FCC / PSE / CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) |
- Customizable, please contact us for details.
